Load Carrier Series
Horizontal Surface Pump
Our best-performing per-footprint design is compact and efficient, increasing production with minimal maintenance.
7,000 - 25,000 BPD
Flow Rate Range
100 - 300 HP
Electrical Engine
25” Skid Width
With Custom Skid Lengths
Load Carrier Series Overview
How does the Load Carrier Series differ from the NTC series?
The Load Carrier Series differs from the NTC series by offering higher horsepower (100–300 HP), an increased flow rate (up to 25,000 BPD), an enlarged intake diameter to accommodate the higher flow rate, and a load-capacity pedestal with a greater base diameter and wall thickness for added structural stability.
What are the reduced costs saved by the Load Carrier Series?
The Load Carrier Series reduces upfront costs by maintaining a 25" skid width while customizing skid length to the application, minimizing excess material costs. Additionally, the load carrier requires low to moderate maintenance over its life cycle, lowering upkeep expenses.
What applications does the Load Carrier Series operate optimally in?
The Load Carrier Series supports the same core applications as the NTC series — including produced water transfer, water injection and disposal, pipeline booster systems, chemical handling, mine dewatering, and slurry transport — as well as additional applications such as LPG injection, CO2 injection, and jet pumping.
For more information, please download our full brochure or contact us below:

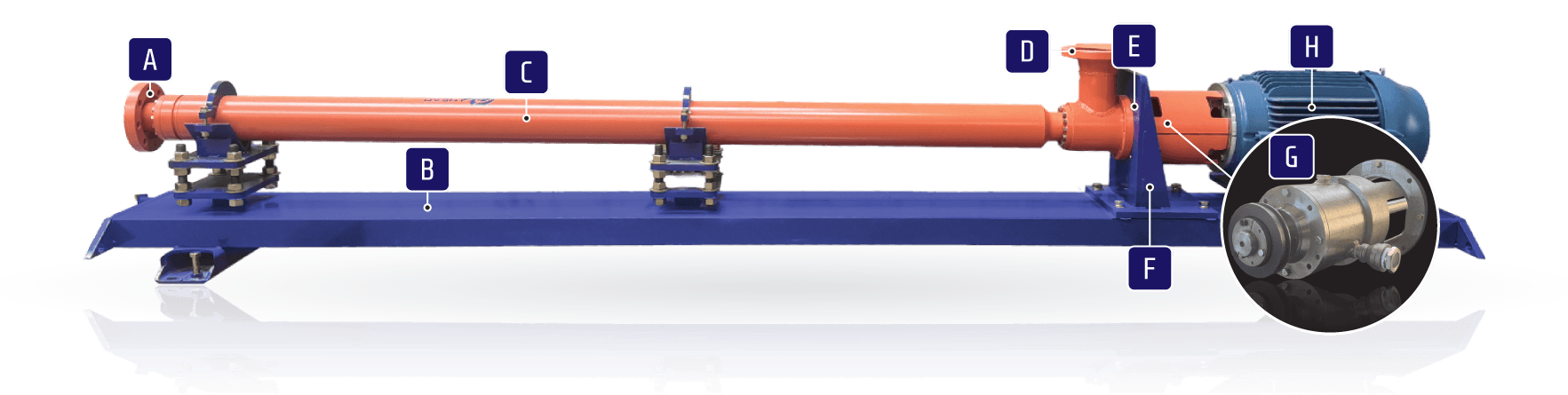

Product Details
A) Discharge Spool
Standard 316L SS from 300 - 2500 ANSI RF or RTJ
Selection of materials available to meet the specification requirement
B) Skid
Compact skid design, with a C15 channel and a maximum width of 25”
Lowest fixed centerline among all SPSs, reducing vibration and increasing efficiency
C) Pump
Flow ranges from 7,000-25,000 bpd
Stages can be adapted to specification requirements
Stainless steel material
D) Intake Spool
Machined intake standard 316 SS - 150 to 900 ANSI RF
Different materials and class sizes are customizable to meet specifications requiring up to 3000 psi.
E) Vibration XMTR
XMTR transmitter, linked to a PLC, monitors the vibrations and features shutdown points
F) NTC Pedestal
Designed to increase the nozzle loading capacity
Reduces vibration and damage caused by excessive nozzle loading on other surfaces and pumping systems
G) Load Carrier
Custom-designed component that absorbs axial thrust loads and isolates the motor
Built for accessibility to allow for easy maintenance and reduced downtime
H) Electrical Motor
100-300 HP motor, 2-pole electric, and 3600 rpm.
Key Features
— Structural
Skid Design
Traditional OEM skids are sized to accommodate the widest range of engine and application configurations — leaving smaller horizontal multi-stage centrifugal models saddled with oversized, over-built frames. Our skids are sized to the application, reducing packaging footprint and installation cost.
Reduced Footprint
Lower Packaging Costs
Application Matched Sizing
— Load Support
Load Capacity Pedestal
The load-bearing pedestal is a purpose-built addition not found in traditional NTC HPS models. Improved support for the intake valve under load reduces the risk of misalignment and component damage from excessive force.
Increased Load Capacity
Reduced Damages & Maintenance
— Increased Flow Rate

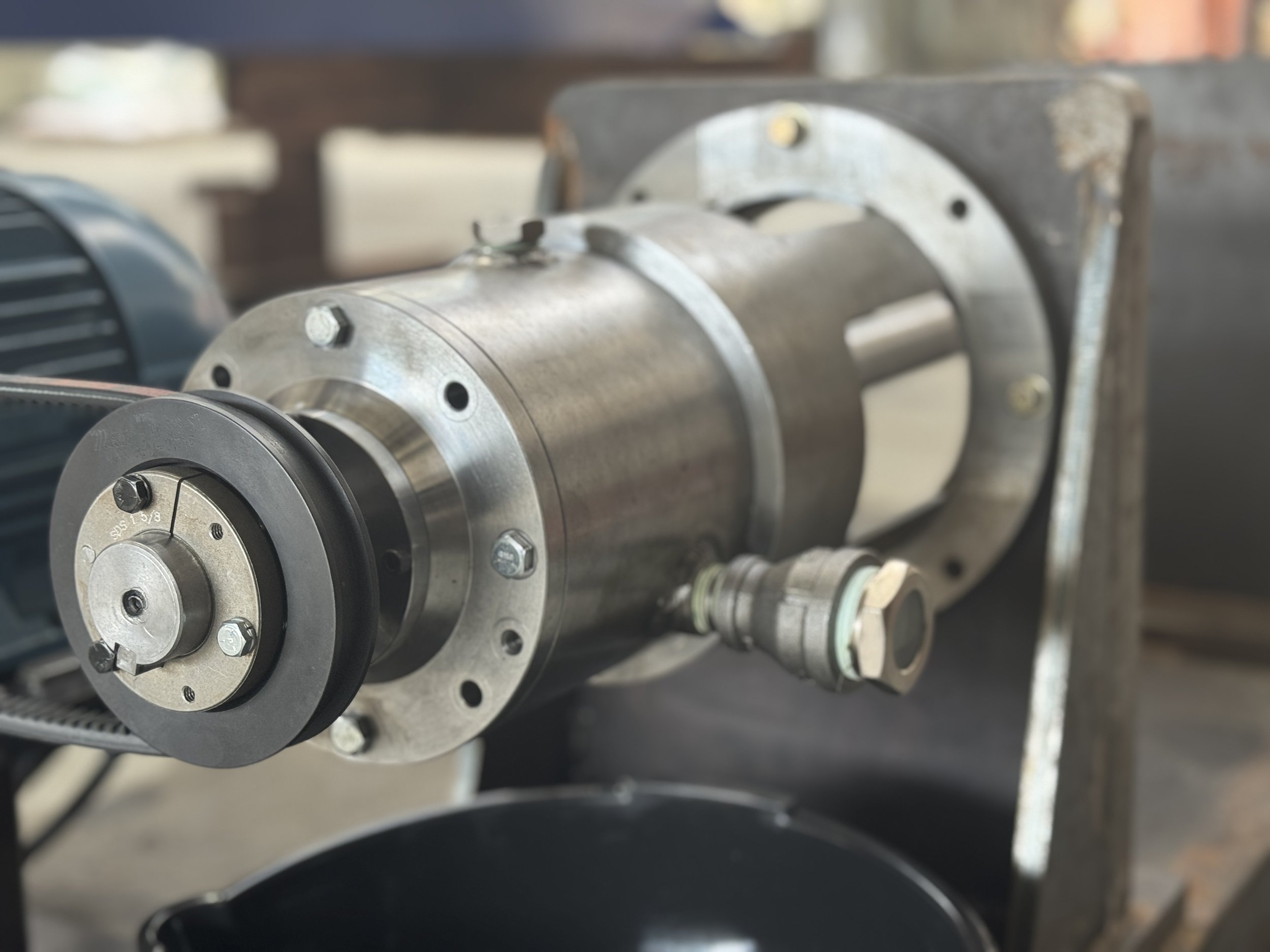

Load Carrier
The load carrier is a custom-designed component that isolates the motor from axial thrust loads, enabling a wider operating flow-rate range while maintaining a reduced footprint. The load carrier features an accessible design for easier maintenance and requires light to moderate maintenance over its operating life, reducing upkeep costs.
Easy Service Accessibility
Reduced Maintenance Downtime
