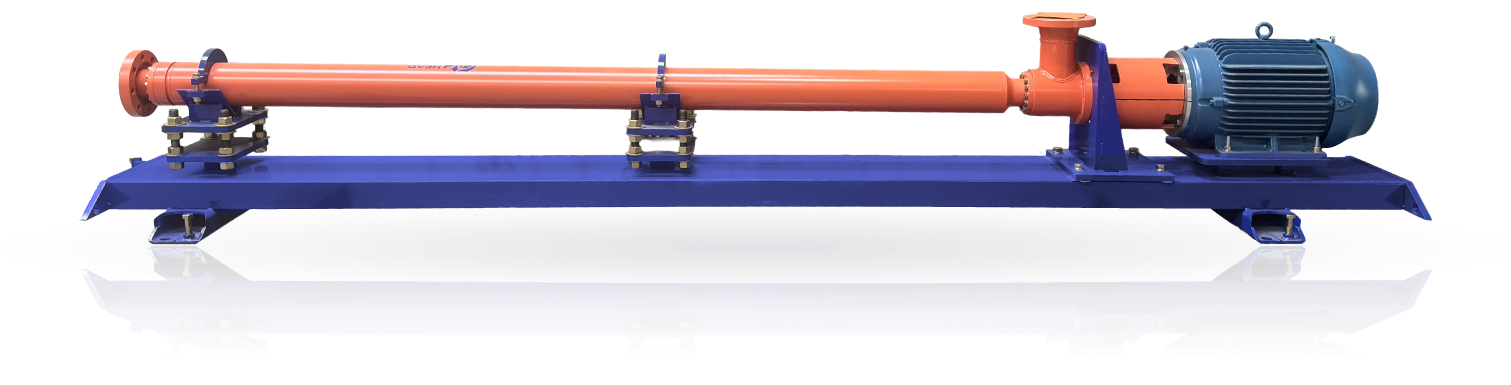

NTC Series
Horizontal Multi-Stage Centrifugal Pump
Built compact and efficient, saving production and lifetime maintenance costs.
700 - 7000 BPD
Flow Rate Range
25”
Skid Width
100 HP
Electrical Engine
NTC
No Thrust Chamber
NTC Series Overview
What separates the Head Rise NTC series pumps from competitors?
Our key differences include increased nozzle-loading capacity, higher horsepower, direct-coupling design, reduced lifetime maintenance, reduced inefficiency, and a smaller skid to cut down on excessive material costs and reduce the total footprint.
What are the reduced costs saved by the Head Rise NTC series?
Compared to competitor No Thrust Chamber models, Head Rise reduces overall costs — product and lifetime maintenance combined — by an average of 30–40%.
What is the performance range of the Head Rise NTC series?
The NTC series is capable of producing a flow rate of 700 - 7000 BPD (with additional capacity available with the Load Carrier), using a 100 HP electric motor, and operating at 30 - 60 Hz.
For more information, please download our full brochure or contact us below:

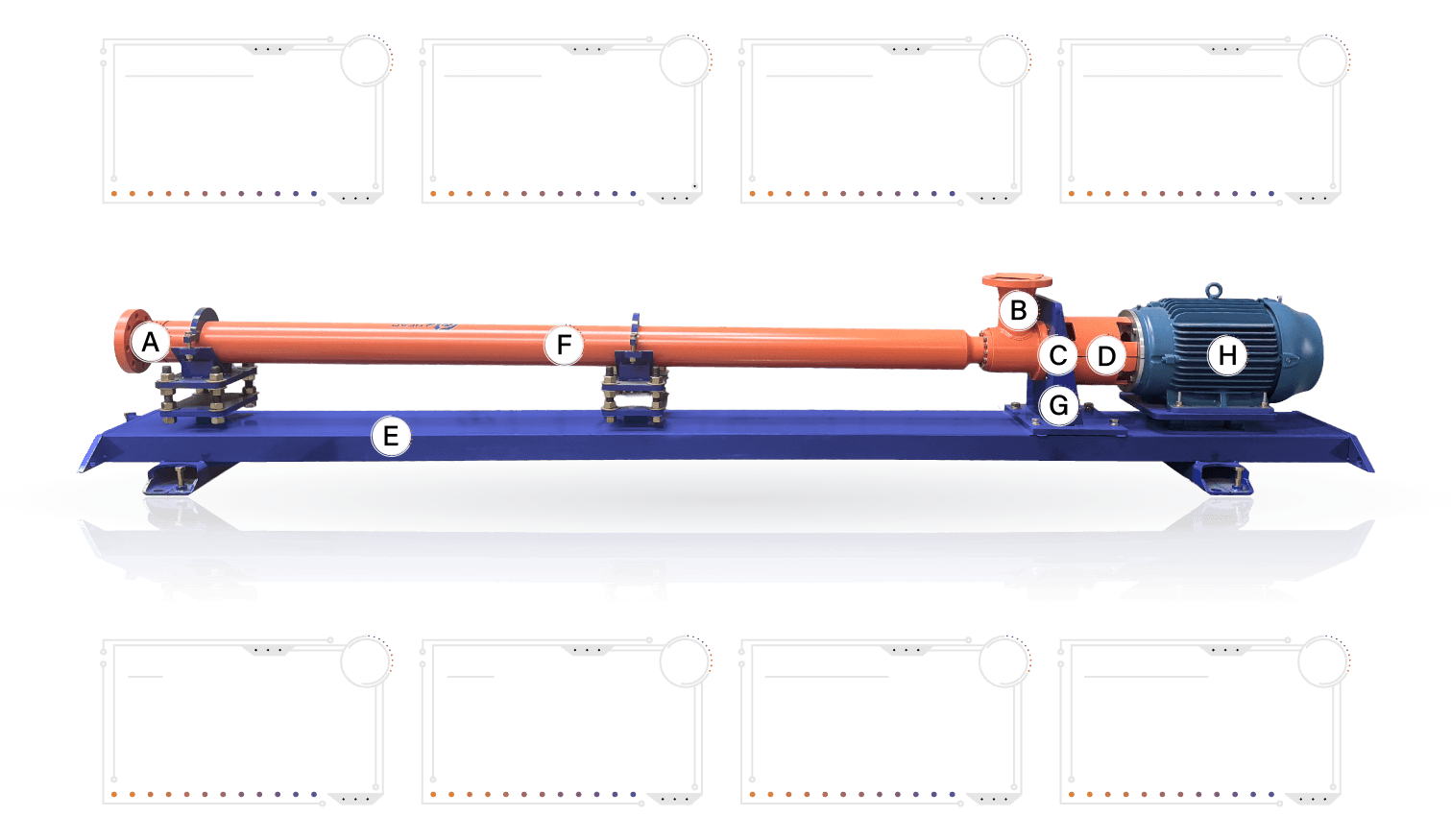

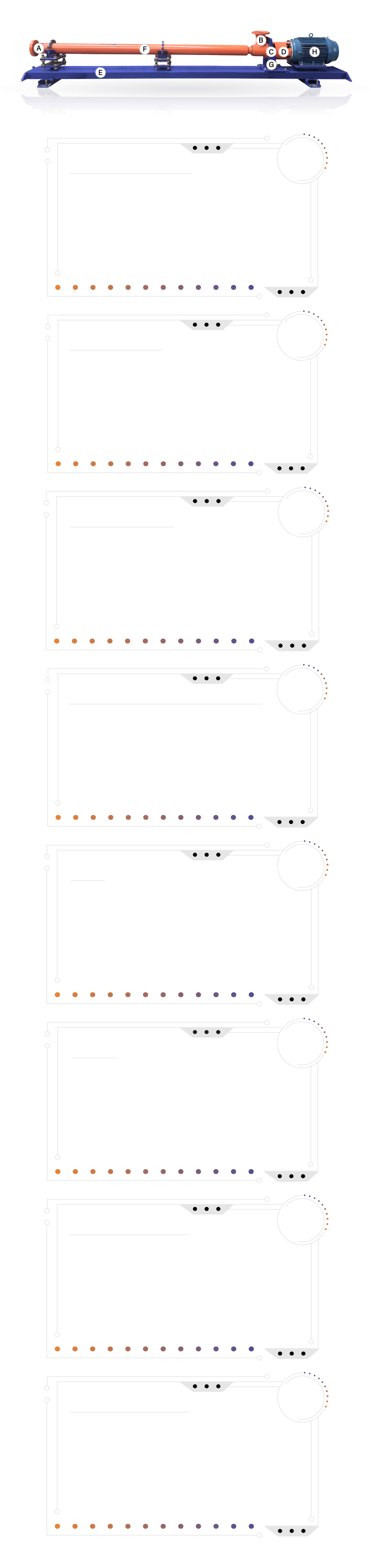

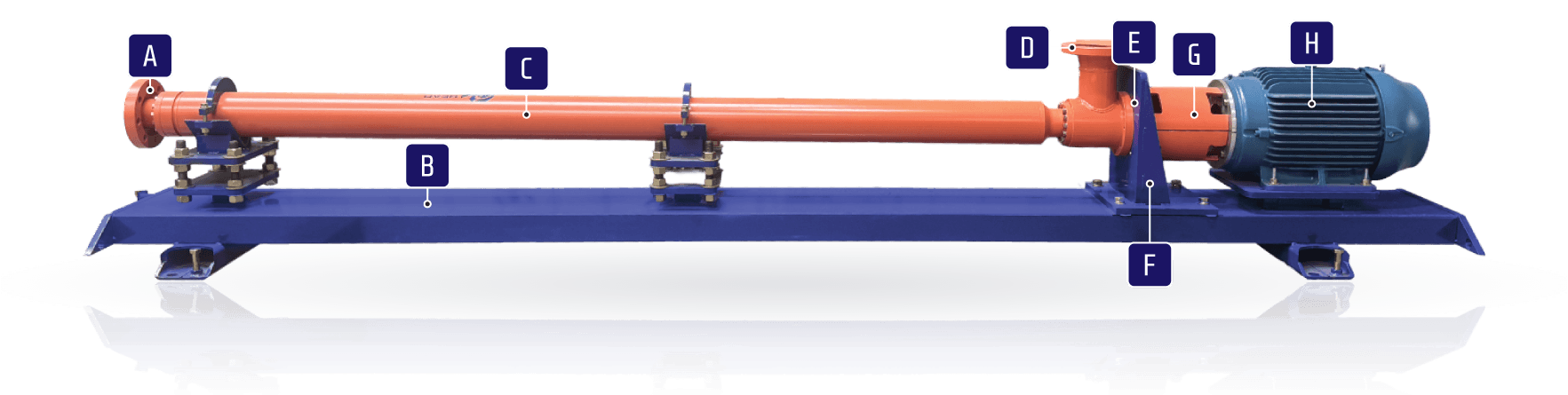

Product Details

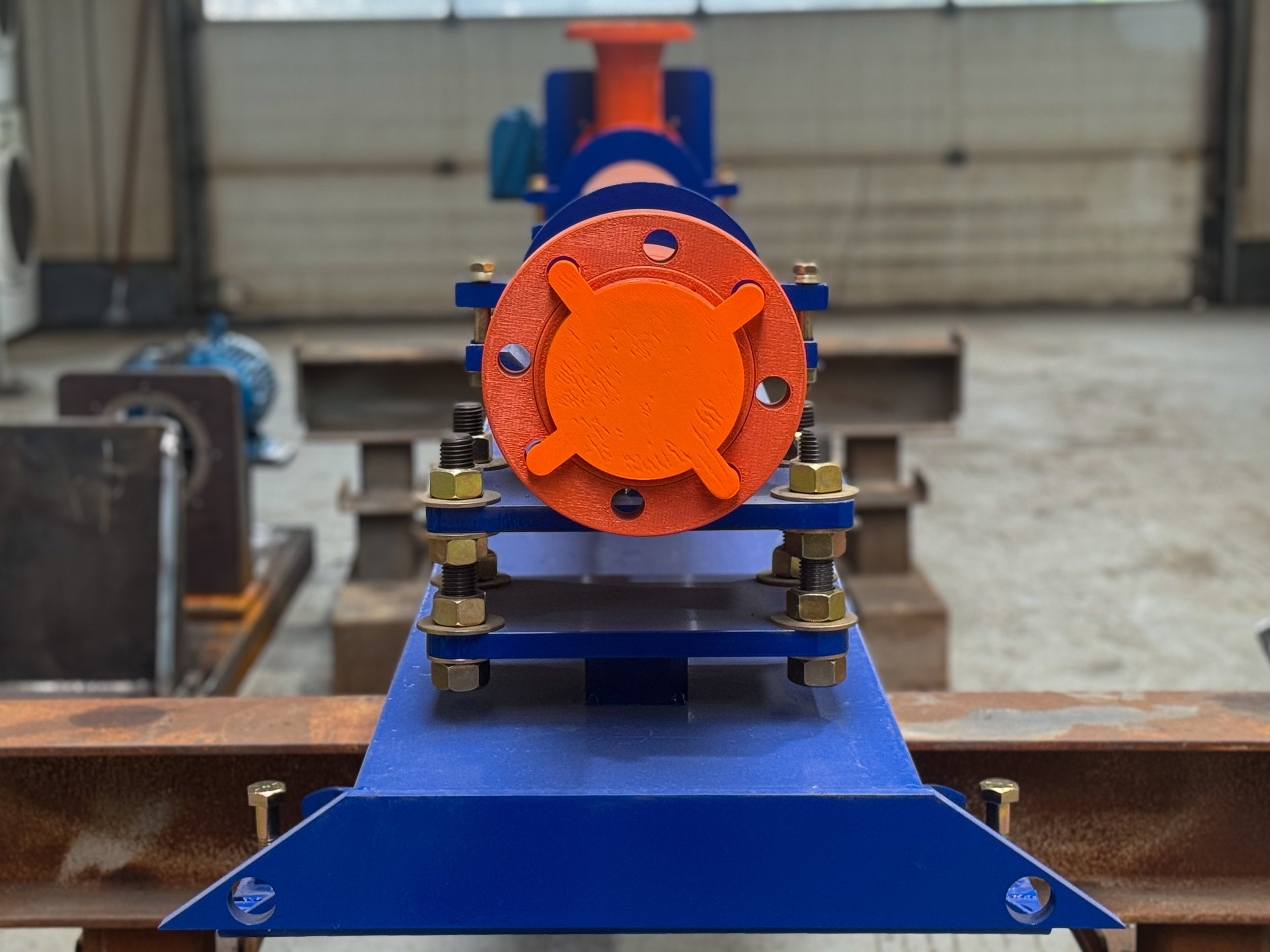

A) Discharge Spool
Standard 316L SS from 300 to 2500 ANSI RF or RTJ.
Selection of materials available to meet the specification requirement.
B) Skid
Compact skid design, with a C15 channel and a maximum width of 25”.
Lowest fixed centerline among all SPSs, reducing vibration and increasing efficiency.
C) Pump
Flow ranges from 700-7,000 bpd, without load carrier.
Stages can be adapted to specification requirements.
Stainless steel material.

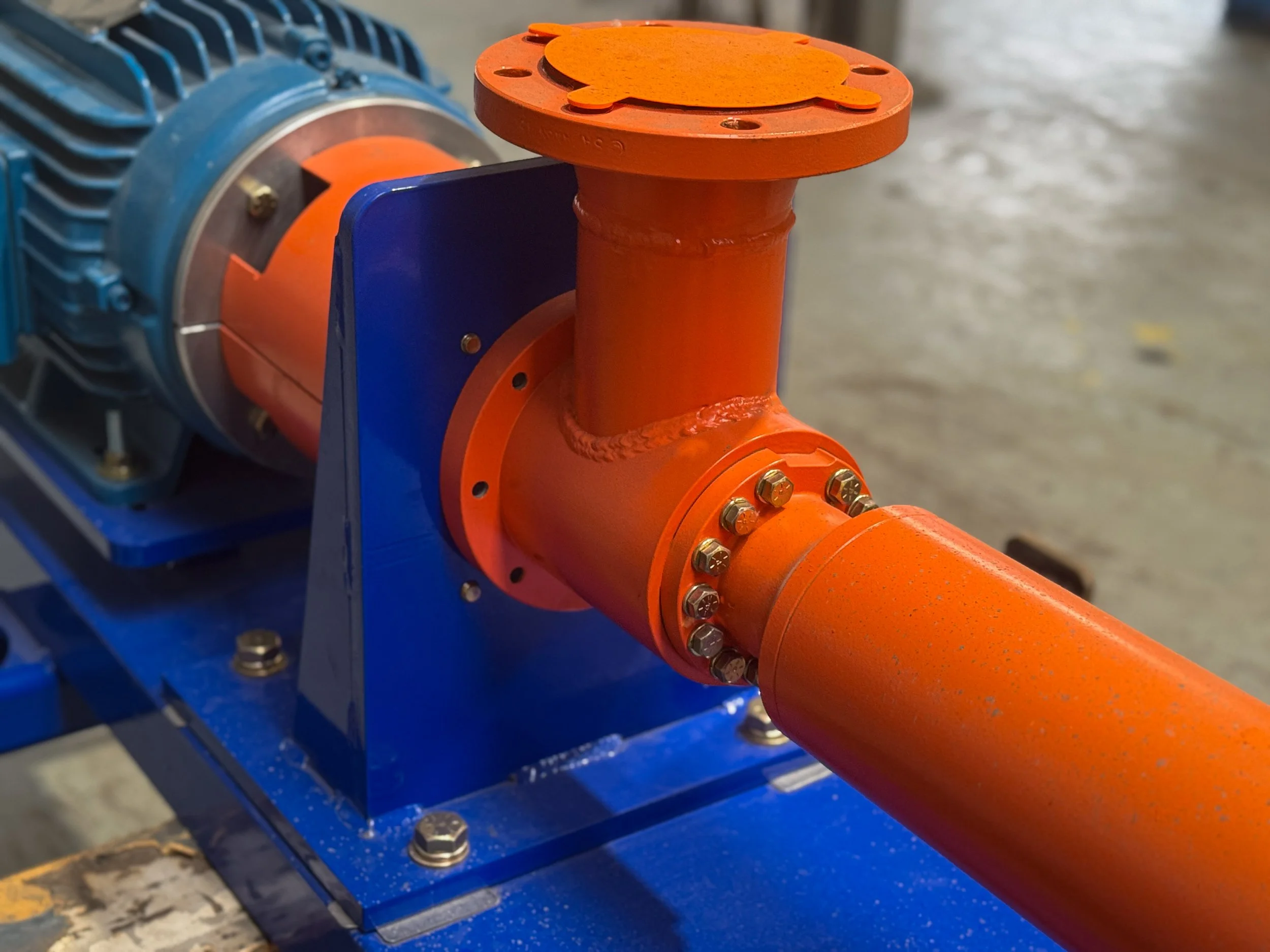

D) Intake Spool
Machined intake standard 316 SS - 150 to 900 ANSI RF.
Different materials and class sizes are customizable to meet specifications requiring up to 3000 psi.
E) Vibration XMTR
The XMTR transmitter, linked to a PLC, monitors vibrations and includes shutdown points.
F) NTC Pedestal
Designed to increase the nozzle loading capacity.
Reduces vibration and damage caused by excessive nozzle loading.
G) Split Non-Sparking Guard
Designed as a service-friendly component to make easy access into the seal and intake area, making the removal and installation of the seal easier in the field and in the shop.

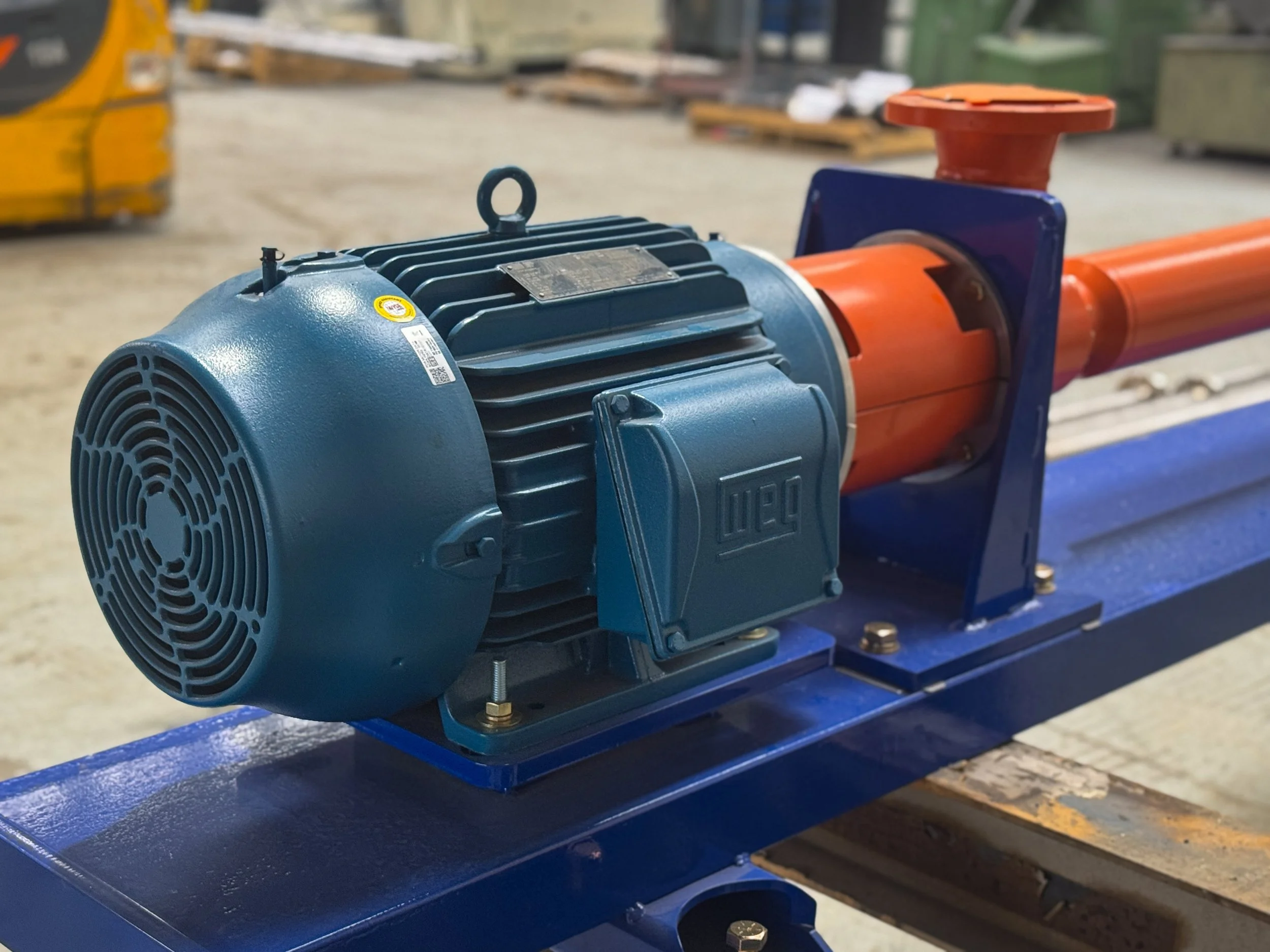

H) Electrical Motor
10-100 HP motor, 2-pole electric, and 3600 rpm.
Key Features
— NTC Design
No Thrust Chamber
The thrust chamber is traditionally one of the largest cost drivers in surface pumping systems. Our NTC (No Thrust Chamber) designs eliminate it entirely — allowing engine bearings to absorb the axial load instead. The result: no recurring replacement costs, no maintenance-related production shutdowns, and the ability to service components while the unit stays running.
Reduced Component Count
Cost Savings
Easy Maintenance
— Structural
Skid Design
Traditional OEM skids are sized to accommodate the widest range of engine and application configurations — leaving smaller horizontal multi-stage centrifugal models saddled with oversized, over-built frames. Our skids are sized to the application, reducing packaging footprint and installation cost.
Reduced Footprint
Lower Packaging Costs
Application Matched Sizing
— Load Support
Load Capacity Pedestal
The load-bearing pedestal is a purpose-built addition not found in traditional NTC HPS models. Improved support for the intake valve under load reduces the risk of misalignment and component damage from excessive force.
Increased Load Capacity
Reduced Damages & Maintenance
— High Serviceability

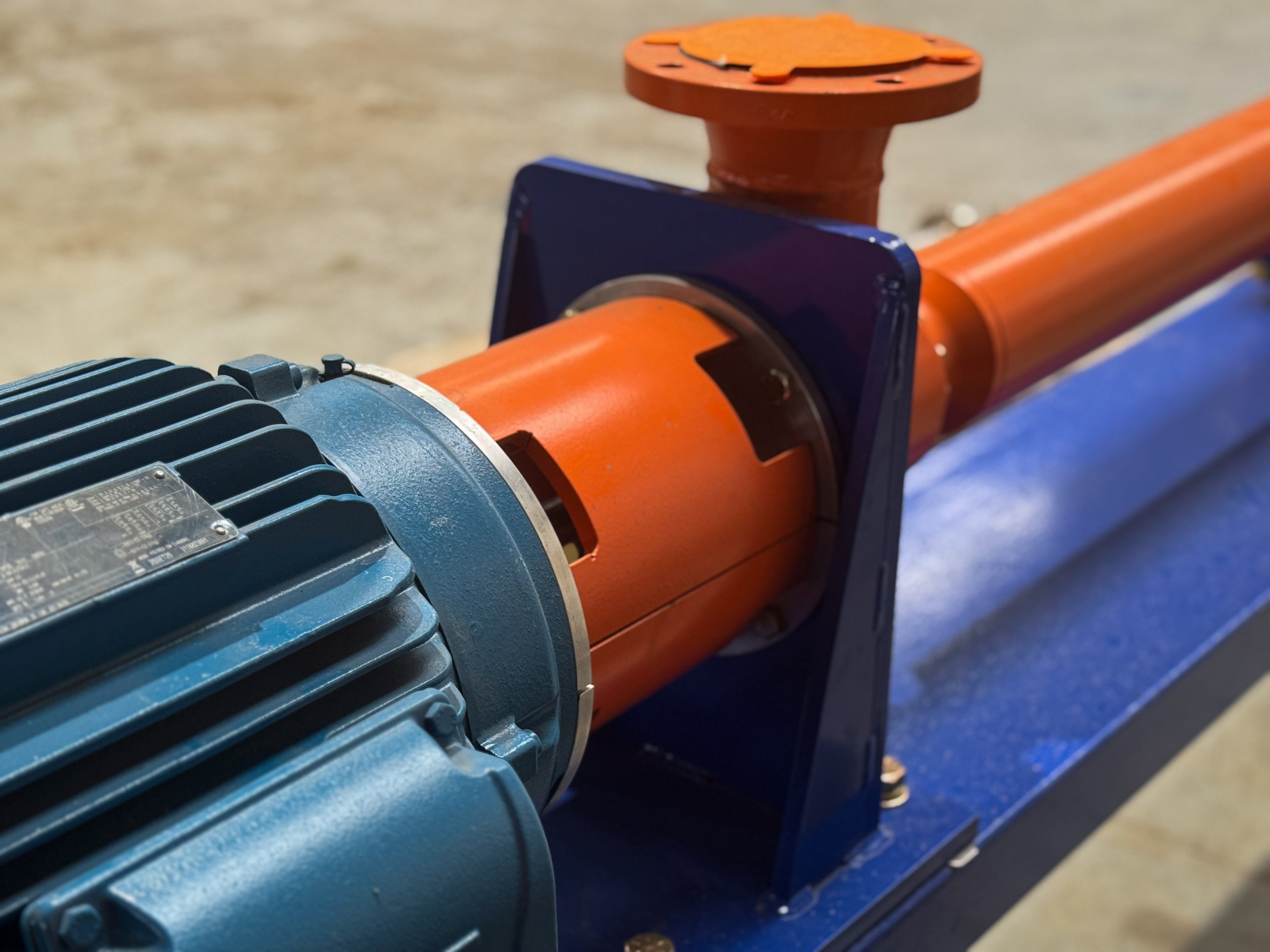

Split Non-Sparking Guard
Traditional bellhousing components have been replaced with a split guard design, improving access to the seal and intake. This allows for faster seal removal and installation — both in the field and in the shop — directly reducing maintenance time and costs.
Easy Service Accessibility
Reduced Maintenance Downtime
| HeadRise SPS | Competitor A | Competitor B | |
|---|---|---|---|
| Starting Cost | $36,000 – $48,000 | $50,000 – $70,000 | $50,000 - $350,000 |
| Direct Coupling | Yes | Yes | No |
| Maintenance | Low | Low | High |
| High Nozzle Load Capacity | Yes | No | No |
| Horse Power | 100 hp | 75 hp | 20 – 350 hp |
| Footprint | 25" Wide | 24" – 25" Wide | 35" Wide |
Competitor Analysis
Contact Us
For pricing inquiries or further product information, please reach out to us.
